Fuji - CCLYOG
Fuji · Guides
NZ RRP incl GST
$5.99 to $17.99
Recommended retail. Retailers set their own prices.
The technology in this part
- O ring (aluminium oxide) Ring materials: Torzite, SiC, Alconite, SiN II, Fazlite and the O ring →
- Frosted silver-white stainless (CC) Frame materials and finishes: titanium, stainless, and P, CC, BC, GM →
- LY frame Guide frames: which family goes where →
Sizes
Specification

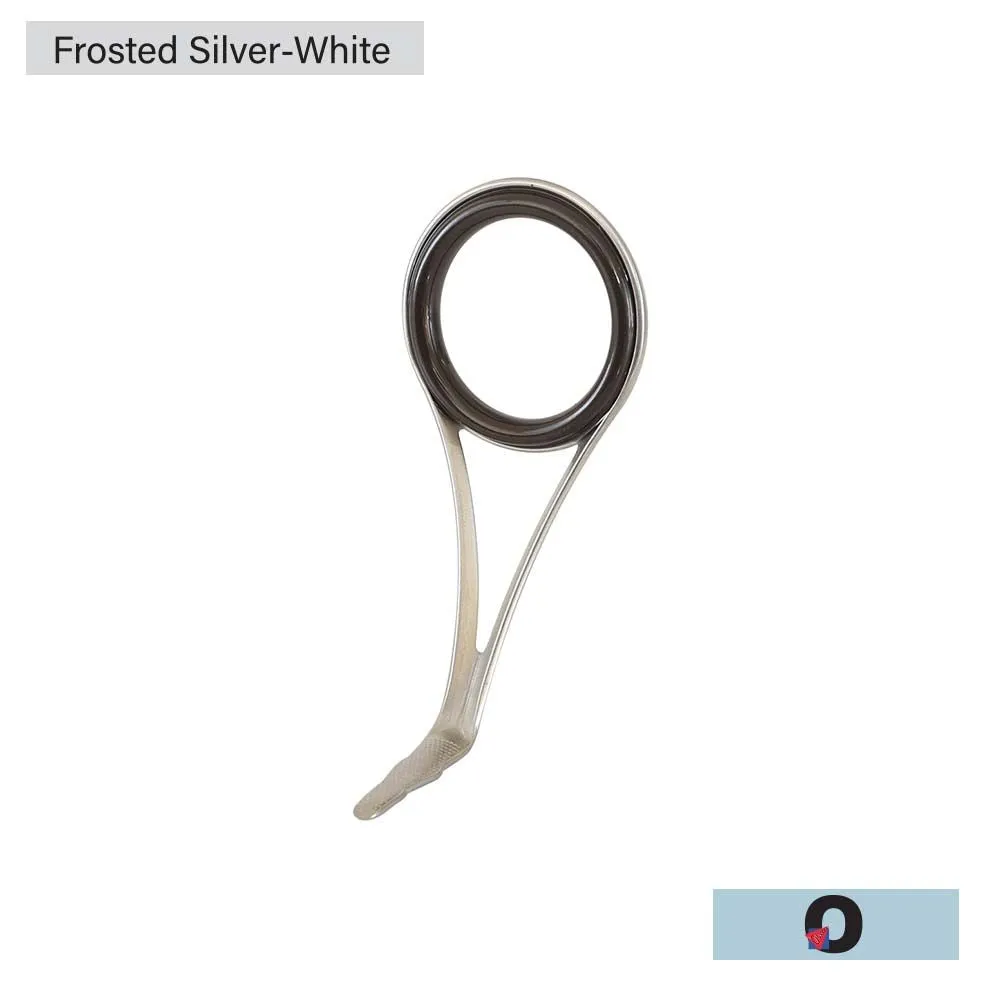

Fuji - CCLYOG
Single Foot
Deep pressed high frame guide suitable for spinning applications replaces the old Y frame
Frame Material: Stainless
Frame Colour: Frosted Silver White
Ring Material: O Ring
Ring Type: S
Sizes
| Size | H (mm) | L1 (mm) | L (mm) |
| 8 | 17.6 | 9.0 | 13.6 |
| 10 | 21.7 | 10.0 | 16.0 |
| 12 | 27.6 | 12.0 | 20.2 |
| 16 | 34.2 | 14.0 | 24.0 |
| 20 | 42.2 | 16.0 | 28.5 |
| 25 | 51.0 | 19.0 | 33.5 |
| 30 | 61.0 | 20.5 | 43.0 |
