Fuji - CCLCAG
Fuji · Guides
NZ RRP incl GST
$9.99 to $34.99
Recommended retail. Retailers set their own prices.
The technology in this part
- Alconite ring Ring materials: Torzite, SiC, Alconite, SiN II, Fazlite and the O ring →
- Frosted silver-white stainless (CC) Frame materials and finishes: titanium, stainless, and P, CC, BC, GM →
- LC frame Guide frames: which family goes where →
Sizes
Specification

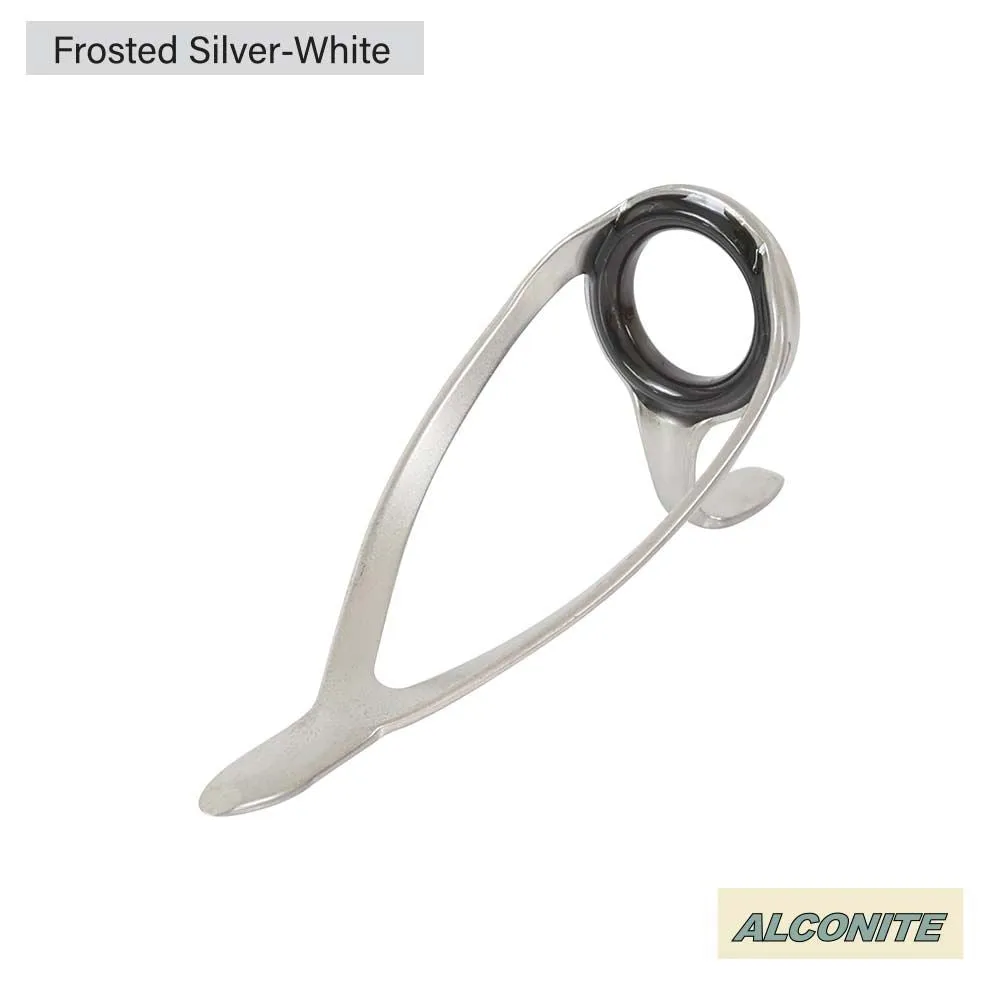

Fuji - CCLCAG
Long Cast Guide
Multi-purpose specialty casting guide.
Frame Material: Stainless
Frame Colour: Frosted Silver White
Ring Material: Alconite
Ring Type: UJ = 5 – 6, LH = 8 – 20
Sizes
| Size | H (mm) | L1 (mm) | L2 (mm) | L (mm) |
| 5.5 | 8.5 | 5.5 | 5.5 | 24.5 |
| 6 | 9.0 | 5.0 | 5.0 | 30.0 |
| 8 | 11.6 | 7.8 | 6.0 | 35.0 |
| 10 | 14.1 | 9.0 | 7.5 | 40.3 |
| 12 | 17.3 | 10.5 | 8.5 | 48.0 |
| 12M | 23.2 | 11.5 | 9.0 | 49.0 |
| 16 | 26.6 | 13.5 | 11.5 | 66.0 |
| 16M | 35.5 | 14.9 | 12.7 | 75.8 |
| 20 | 47.5 | 16.5 | 15.0 | 95.0 |
