Fuji - BCLYOG
Fuji · Guides
NZ RRP incl GST
$4.99 to $14.99
Recommended retail. Retailers set their own prices.
The technology in this part
- O ring (aluminium oxide) Ring materials: Torzite, SiC, Alconite, SiN II, Fazlite and the O ring →
- Frosted dark-grey stainless (BC) Frame materials and finishes: titanium, stainless, and P, CC, BC, GM →
- LY frame Guide frames: which family goes where →
Sizes
Specification

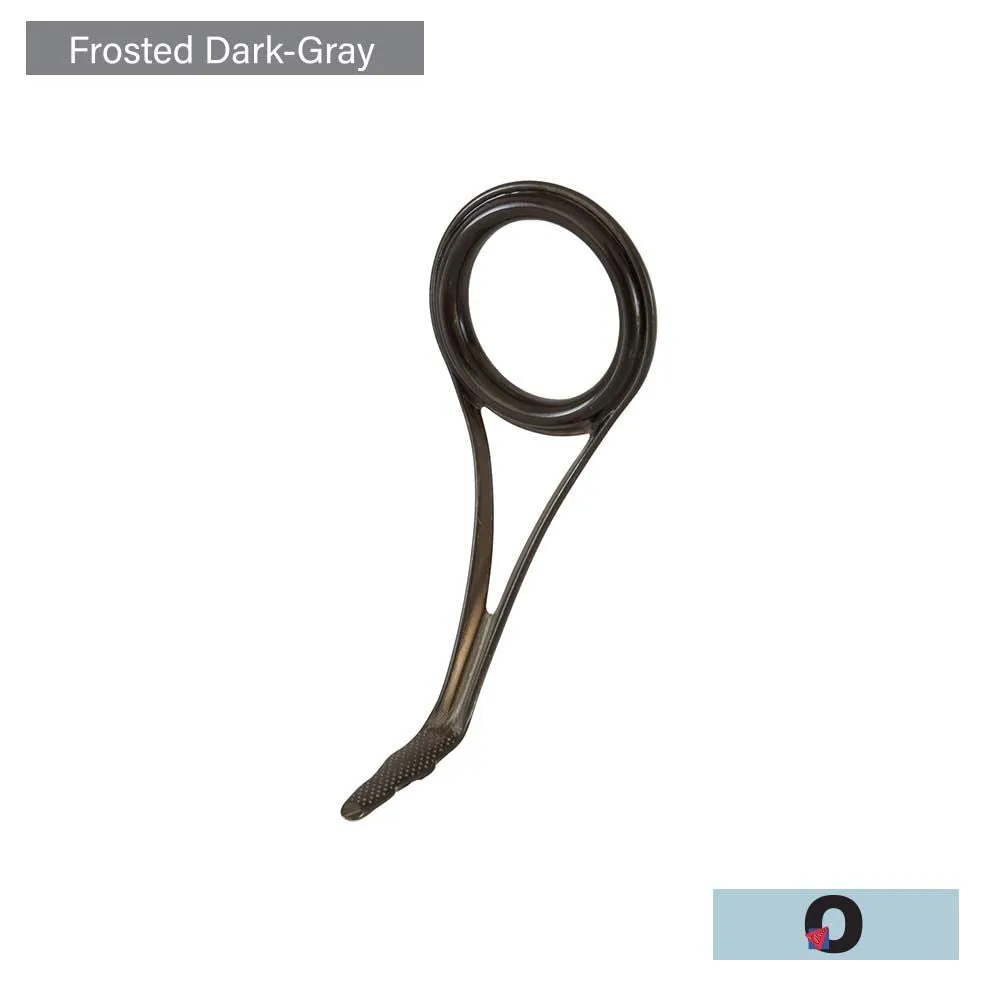

Fuji - BCLYOG
Single Foot
Deep pressed high frame guide suitable for spinning applications replaces the old Y frame
Frame Material: Stainless
Frame Colour: Frosted Dark Gray
Ring Material: O Ring
Ring Type: S
Sizes
| Size | H (mm) | L1 (mm) | L (mm) |
| 8L | 14.3 | 7.3 | 13.0 |
| 8 | 17.6 | 9.0 | 13.6 |
| 10 | 21.3 | 8.9 | 16.3 |
| 12 | 24.8 | 10.4 | 21.0 |
| 16 | 32.3 | 11.9 | 26.4 |
| 20 | 41.8 | 13.3 | 29.9 |
| 25 | 50.7 | 16.2 | 33.7 |
| 30 | 60.0 | 17.4 | 39.4 |
