Fuji - GMMNSG
Fuji
NZ RRP incl GST
$19.99 to $89.99
Recommended retail. Retailers set their own prices.
The technology in this part
- SiC ring Ring materials: Torzite, SiC, Alconite, SiN II, Fazlite and the O ring →
- Shiny grey stainless (GM) Frame materials and finishes: titanium, stainless, and P, CC, BC, GM →
- MN frame Guide frames: which family goes where →
Sizes
Specification

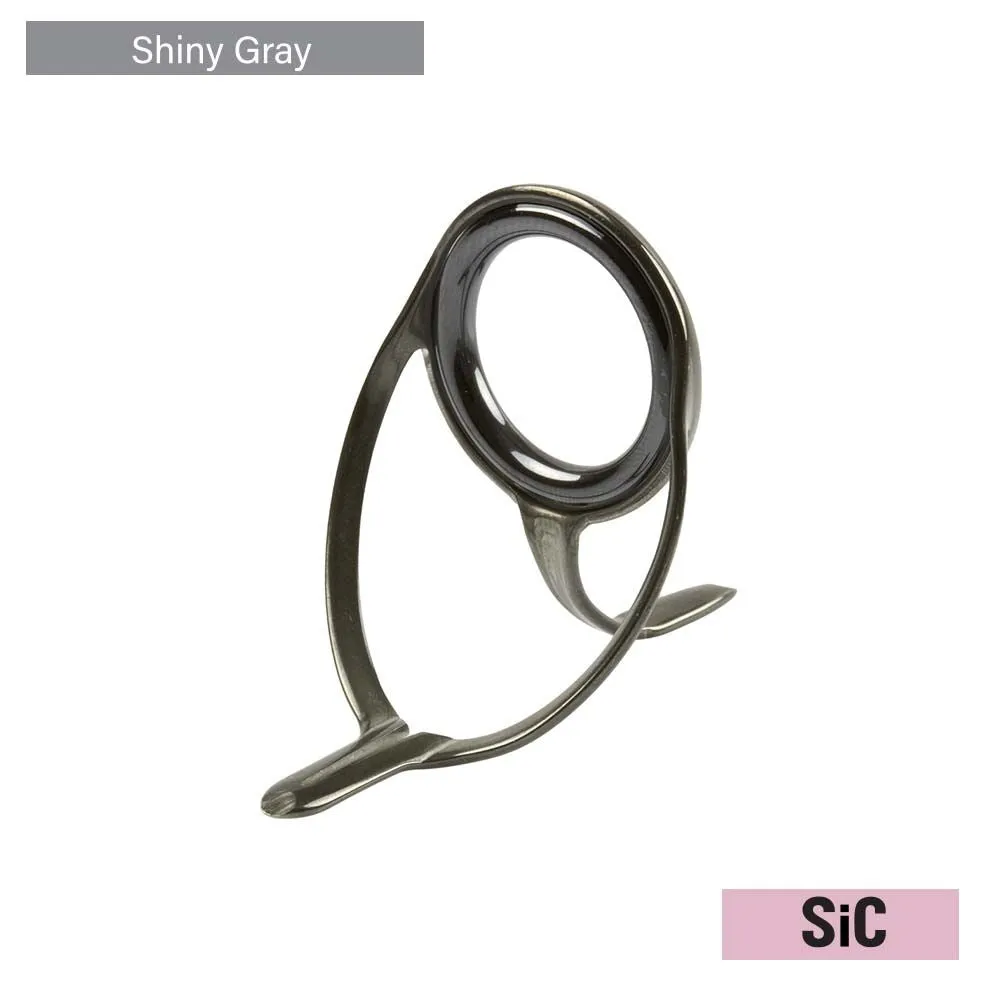

Fuji - GMMNSG
Double Foot
Multi-purpose for medium to medium/heavy spin and casting rods.
Frame Material: Stainless
Frame Colour: Shiny Gray
Ring Material: SiC
Ring Type: S = Up to 30, J = 40
Sizes
| Size | H (mm) | L1 (mm) | L2 (mm) | L (mm) |
| 8 | 11.5 | 7.0 | 5.0 | 20.9 |
| 10 | 14.6 | 8.3 | 6.5 | 26.8 |
| 12 | 17.3 | 9.0 | 7.9 | 28.5 |
| 16 | 22.0 | 10.0 | 8.9 | 36.0 |
| 20 | 30.2 | 11.3 | 10.5 | 46.2 |
| 25 | 39.3 | 15.0 | 12.5 | 58.2 |
| 30 | 49.8 | 18.0 | 15.5 | 68.9 |
| 40 | 62.1 | 21.0 | 18.5 | 84.0 |
