Fuji - GMHBNG
Fuji · Guides
NZ RRP incl GST
$19.99 to $64.99
Recommended retail. Retailers set their own prices.
The technology in this part
- SiN II ring Ring materials: Torzite, SiC, Alconite, SiN II, Fazlite and the O ring →
- Shiny grey stainless (GM) Frame materials and finishes: titanium, stainless, and P, CC, BC, GM →
- HB frame Guide frames: which family goes where →
Sizes
Specification

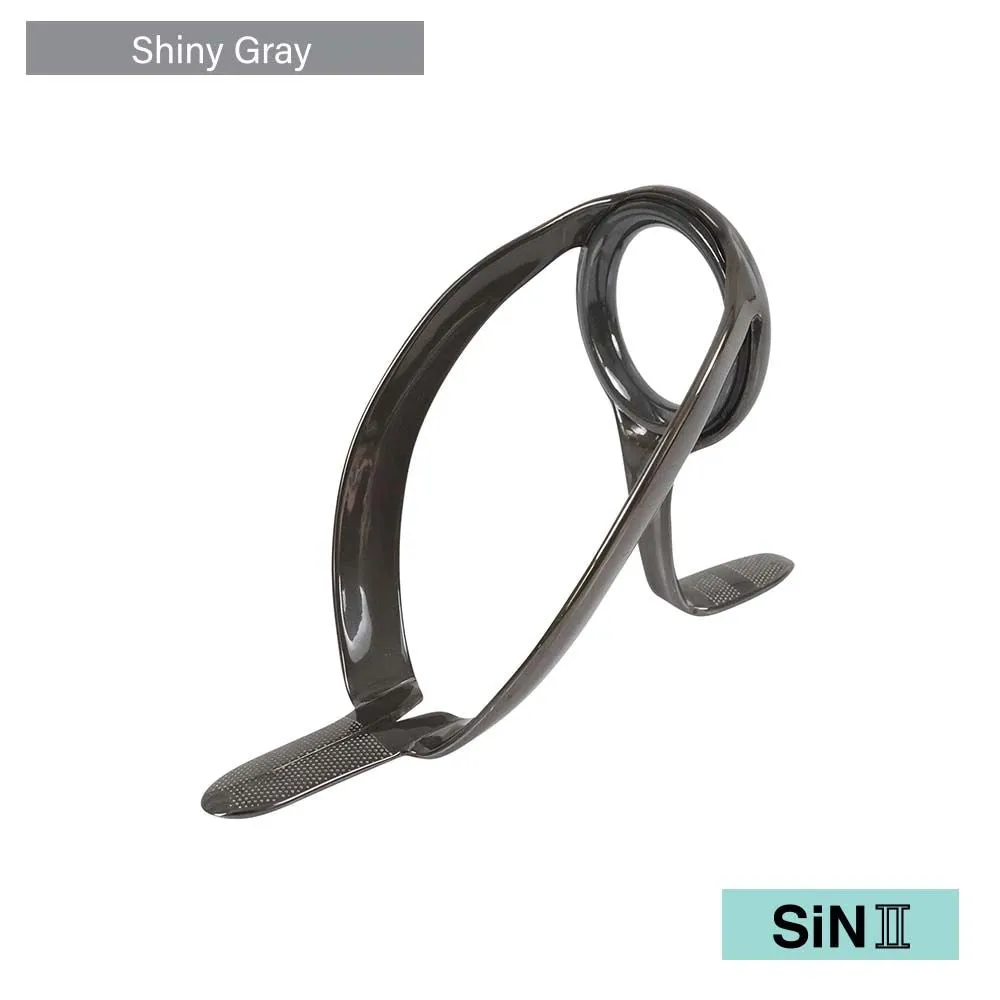

Fuji - GMHBNG
Heavy Double Foot
Multi-purpose for light to medium heavy spin and casting rods
Frame Material: Stainless
Frame Colour: Shiny Gray
Ring Material: SiN II
Ring Type: LH
Sizes
| Size | H (mm) | L1 (mm) | L2 (mm) | L (mm) |
| 8 | 13.3 | 6.7 | 5.7 | 26.3 |
| 10 | 16.8 | 8.1 | 7.8 | 33.0 |
| 12 | 20.8 | 9.9 | 9.5 | 41.5 |
| 16 | 26.4 | 12.1 | 10.7 | 51.0 |
| 20 | 34.0 | 16.0 | 15.1 | 63.0 |
| 25 | 47.8 | 20.5 | 18.8 | 80.0 |
