Fuji - GMMNST
Fuji · Tips
NZ RRP incl GST
$39.99 to $54.99
Recommended retail. Retailers set their own prices.
The technology in this part
- SiC ring Ring materials: Torzite, SiC, Alconite, SiN II, Fazlite and the O ring →
- Shiny grey stainless (GM) Frame materials and finishes: titanium, stainless, and P, CC, BC, GM →
- MN tip top Rod tips: reading 12/3.6 and choosing a top →
Ring/pipe sizes
Specification

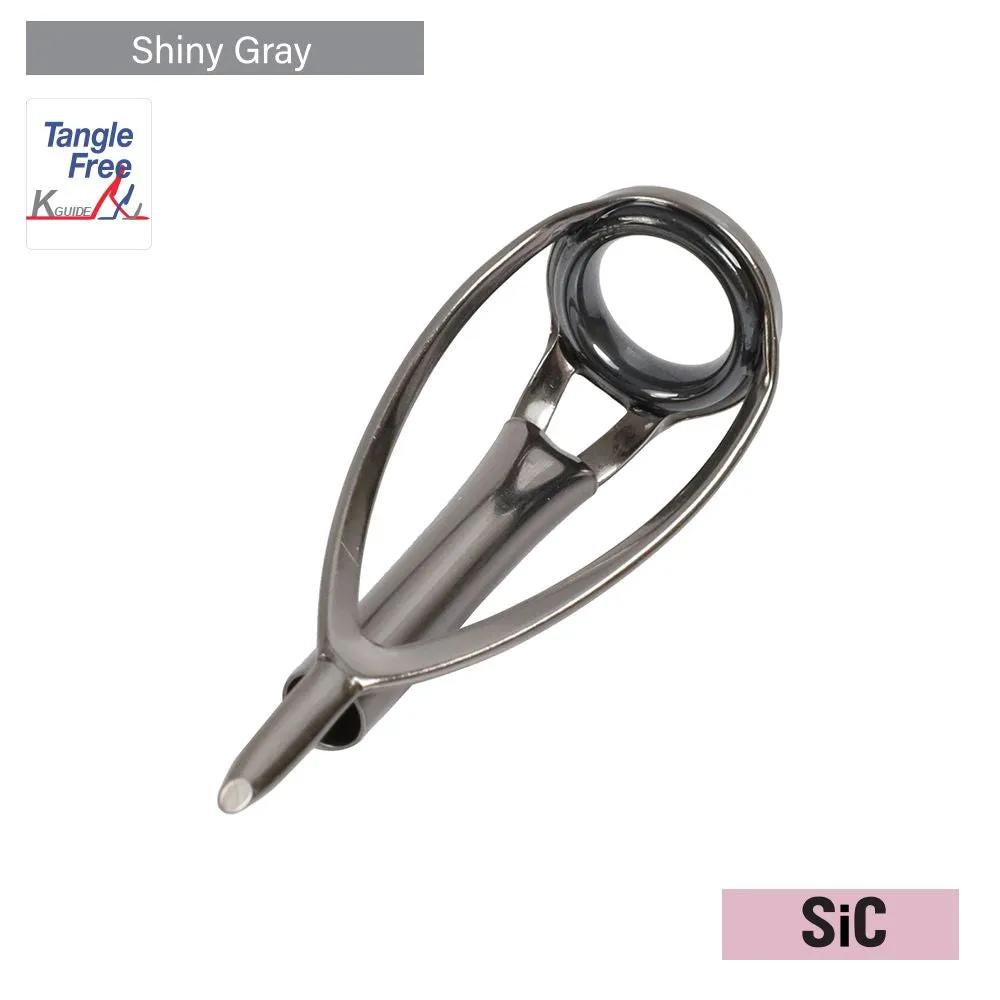

Fuji - GMMNST
General Bind On Tip
Anti-tangle due to the sloped frame. This tip is suitable for spin and casting rods.
Frame Material: Stainless
Frame Colour: Shiny Gray
Ring Material: SiC
Ring Type: J = 6 – 5, LH = 8 – 16
Sizes
| Size | L (mm) | L1 (mm) | H (mm) | O/D (mm) |
| 8/2.0 | 29.5 | 7.5 | 11.5 | 2.24 |
| 8/2.2 | 29.5 | 7.5 | 11.5 | 2.48 |
| 8/2.4 | 29.5 | 7.5 | 11.5 | 2.68 |
| 8/2.6 | 32.0 | 8.0 | 11.5 | 2.91 |
| 8/2.8 | 32.0 | 8.0 | 11.5 | 3.11 |
| 8/3.0 | 32.0 | 8.0 | 11.5 | 3.33 |
| 8/3.2 | 36.5 | 8.5 | 11.5 | 3.53 |
| 10/3.0 | 34.0 | 9.5 | 13.3 | 3.33 |
| 10/3.2 | 37.0 | 9.5 | 13.3 | 3.53 |
| 10/3.6 | 37.0 | 9.5 | 13.3 | 3.97 |
| 10/4.0 | 37.0 | 9.5 | 13.3 | 4.60 |
| 12/3.0 | 38.0 | 10.0 | 14.0 | 3.33 |
| 12/3.2 | 38.0 | 10.0 | 14.0 | 3.53 |
| 12/3.6 | 38.0 | 10.0 | 14.0 | 3.97 |
| 12/4.0 | 38.0 | 10.0 | 14.0 | 4.60 |
| 12/4.5 | 38.0 | 10.0 | 15.0 | 5.10 |
| 12/5.5 | ||||
| 16/3.0 | 41.0 | 11.0 | 17.5 | 3.53 |
| 16/3.2 | 41.0 | 11.0 | 17.5 | 3.53 |
| 16/3.6 | 41.0 | 11.0 | 17.5 | 3.97 |
| 16/4.0 | 41.0 | 11.0 | 17.5 | 4.60 |
