Fuji - BCMNAT
Fuji · Tips
NZ RRP incl GST
$17.99 to $27.99
Recommended retail. Retailers set their own prices.
The technology in this part
- Alconite ring Ring materials: Torzite, SiC, Alconite, SiN II, Fazlite and the O ring →
- Frosted dark-grey stainless (BC) Frame materials and finishes: titanium, stainless, and P, CC, BC, GM →
- MN tip top Rod tips: reading 12/3.6 and choosing a top →
Ring/pipe sizes
Specification

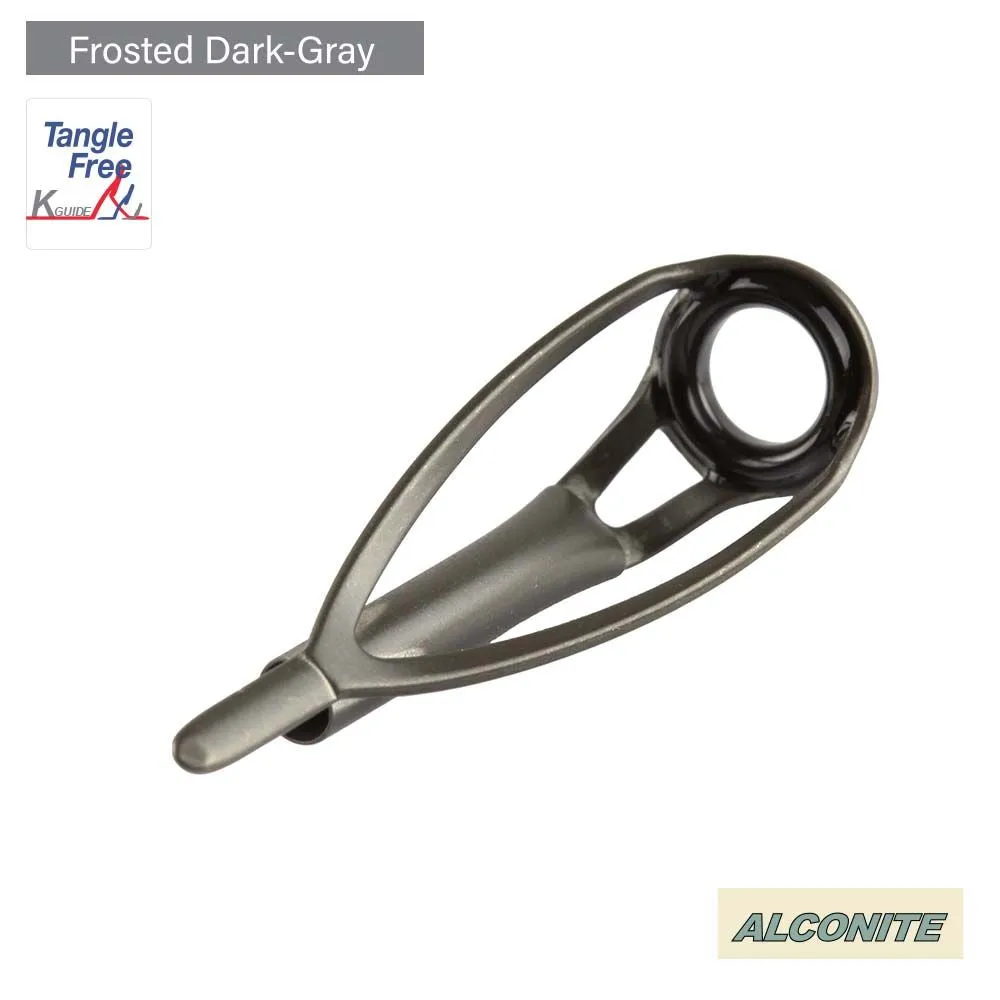

Fuji - BCMNAT Tip
General Bind On Tip
Anti-tangle due to the sloped frame. This tip is suitable for spin and casting rods.
Frame Material: Stainless
Frame Colour: Frosted Dark Gray
Ring Material: Alconite
Ring Type: LH
Sizes
| Size | L (mm) | L1 (mm) | H (mm) | O/D (mm) |
| 6/2.0 | 26.3 | 6.1 | 7.8 | 2.24 |
| 6/2.2 | 26.5 | 6.3 | 7.5 | 2.48 |
| 6/2.4 | 26.7 | 6.2 | 6.8 | 2.68 |
| 6/2.6 | 31.9 | 7.7 | 7.6 | 2.91 |
| 6/2.8 | 31.8 | 7.6 | 7.3 | 3.11 |
| 8/2.0 | 29.1 | 7.3 | 10.1 | 2.24 |
| 8/2.2 | 29.1 | 7.3 | 10.2 | 2.48 |
| 8/2.4 | 29.3 | 7.3 | 9.9 | 2.68 |
| 8/2.8 | 31.7 | 7.6 | 9.8 | 3.11 |
| 8/3.0 | 31.7 | 7.6 | 9.8 | 3.11 |
| 8/3.2 | 35.5 | 7.8 | 10.0 | 3.53 |
| 10/3.0 | 33.8 | 8.3 | 12.2 | 3.33 |
| 10/3.2 | 36.6 | 9.1 | 11.2 | 3.53 |
| 10/3.6 | 36.4 | 8.8 | 11.2 | 3.97 |
| 10/4.0 | 36.9 | 9.1 | 10.8 | 4.60 |
| 12/3.0 | 36.6 | 9.0 | 13.4 | 3.33 |
| 12/3.2 | 36.4 | 9.1 | 13.0 | 3.53 |
| 12/3.6 | 36.8 | 9.1 | 12.6 | 3.97 |
| 12/4.0 | 36.8 | 9.1 | 12.4 | 4.60 |
| 12/4.5 | 37.5 | 9.2 | 11.6 | 5.10 |
| 12/5.0 | ||||
| 16/3.0 | ||||
| 16/3.2 | 40.9 | 10.8 | 18.5 | 3.53 |
| 16/3.6 | 41.0 | 10.6 | 18.0 | 3.97 |
| 16/4.0 | 41.8 | 10.1 | 17.2 | 4.60 |
