Home › Rod Guides › K-Series tangle-free (stainless) › Fuji - CCKLAG

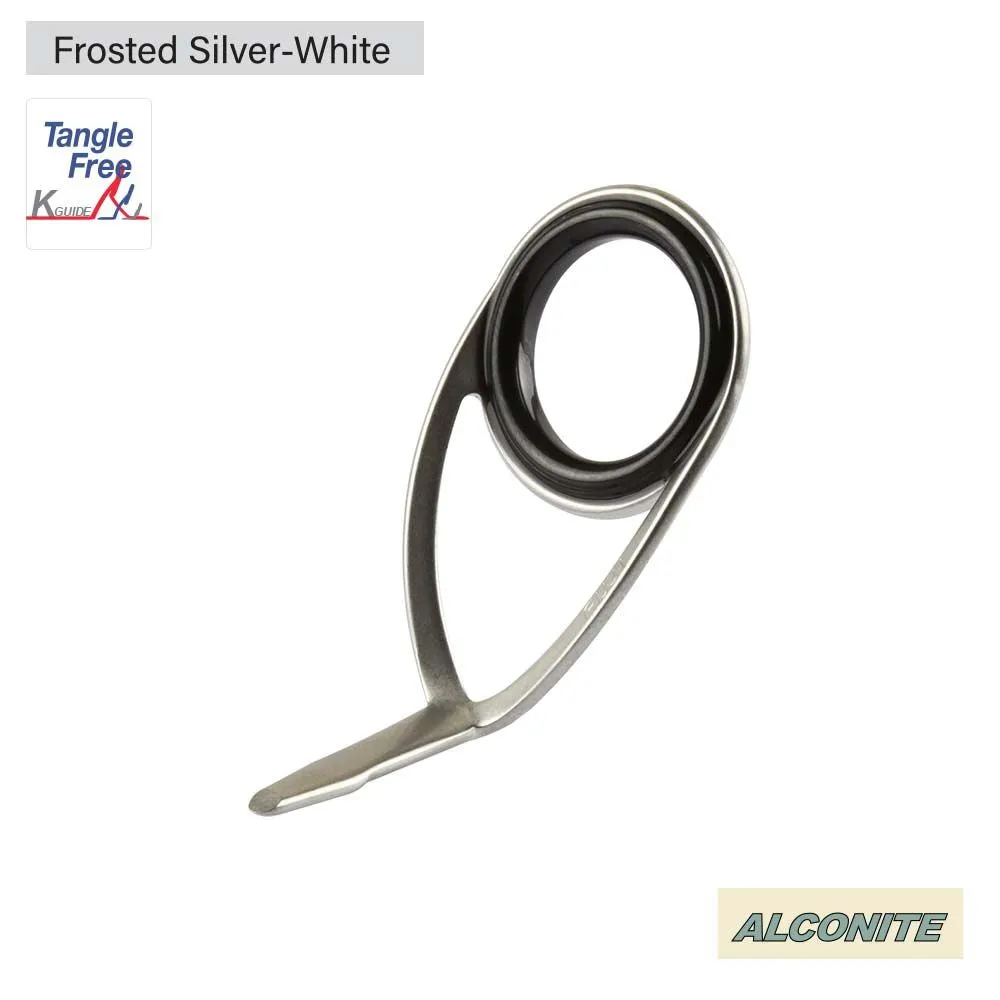

Fuji - CCKLAG
Fuji · Guides
NZ RRP incl GST
$10.99 to $24.99
Recommended retail. Retailers set their own prices.
The technology in this part
- Alconite ring Ring materials: Torzite, SiC, Alconite, SiN II, Fazlite and the O ring →
- Frosted silver-white stainless (CC) Frame materials and finishes: titanium, stainless, and P, CC, BC, GM →
- KL frame (K-Series) The K-Series and the K·R Concept →
Sizes
Specification
Fuji - CCKLAG
Single Foot
KL FRAME
Single foot designed for spinning rods. Patented tangle free design to work with braid, mono and fluorocarbon lines
KL HIGH FRAME
Extra high frame choking guide for KR Concept build. Mainly as the butt guide or first choking guide. Uses patented K design for tangle free casting with braid, mono and fluorcarbon line
Frame Material: Stainless
Frame Colour: Frosted Silver White
Ring Material: Alconite
Ring Type: UJ
Sizes
KL FRAME
KL HIGH FRAME
| Size | H (mm) | L1 (mm) | L (mm) |
| 8H | 26.8 | 13.5 | 24.0 |
| 10H | 30.2 | 16.0 | 28.6 |
| 12H | 31.8 | 17.0 | 29.0 |
| 12 | 19.7 | 12.2 | 23.6 |
| 16 | 26.2 | 14.0 | 28.3 |
| 20 | 33.5 | 16.0 | 35.0 |
| 25 | 44.0 | 19.0 | 42.9 |
| 30 | 60.5 | 20.5 | 53.8 |
