Fuji - BCKWAG
Fuji · Guides
NZ RRP incl GST
$10.99 to $99.99
Recommended retail. Retailers set their own prices.
The technology in this part
- Alconite ring Ring materials: Torzite, SiC, Alconite, SiN II, Fazlite and the O ring →
- Frosted dark-grey stainless (BC) Frame materials and finishes: titanium, stainless, and P, CC, BC, GM →
- KW frame (K-Series) The K-Series and the K·R Concept →
Sizes
Specification

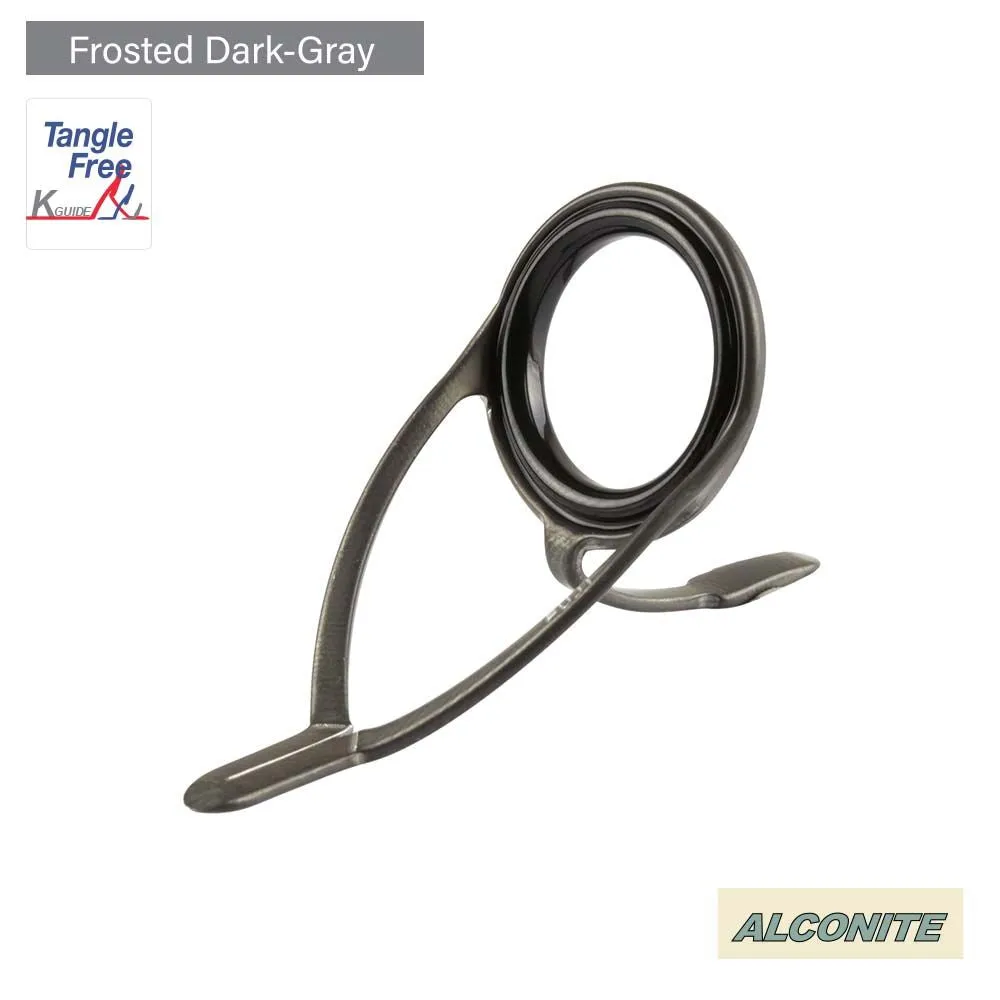

Fuji - BCKWAG Tangle Free Guide
Double Foot
Double foot design for spinning and baitcasting applications. Patented tangle free design for braid, mono and fluorocarbon.
Frame Material: Stainless
Frame Colour: Frosted Dark Gray
Ring Material: Alconite
Ring Type: UJ
Sizes
| Size | H (mm) | L1 (mm) | L2 (mm) | L (mm) |
| 8 | 12.3 | 6.0 | 5.9 | 25.2 |
| 10 | 14.6 | 7.0 | 6.8 | 29.2 |
| 12 | 17.4 | 8.0 | 8.0 | 33.4 |
| 16 | 21.2 | 9.5 | 9.5 | 41.3 |
| 20 | 28.6 | 11.0 | 11.3 | 50.2 |
| 25 | 41.2 | 14.0 | 14.3 | 61.9 |
| 30 | 59.6 | 16.0 | 16.4 | 76.6 |
| 30L | 49.4 | 16.3 | 14.0 | 71.5 |
| 40 | 79.0 | 20.1 | 20.4 | 96.6 |
| 40L | 59.7 | 20.0 | 18.0 | 90.0 |
| 50 | 85.1 | 24.1 | 24.6 | 113.4 |
